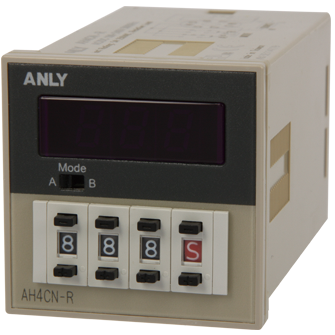

AH4CN-R MULTI-RANGE DIGITAL TIMER

Add to inquiry Inquiry list
  • 7-segment-display for clear display and effective monitoring
  • Protection against power surge and high frequency interference
  • 9.99 second ~ 9990 hour time range

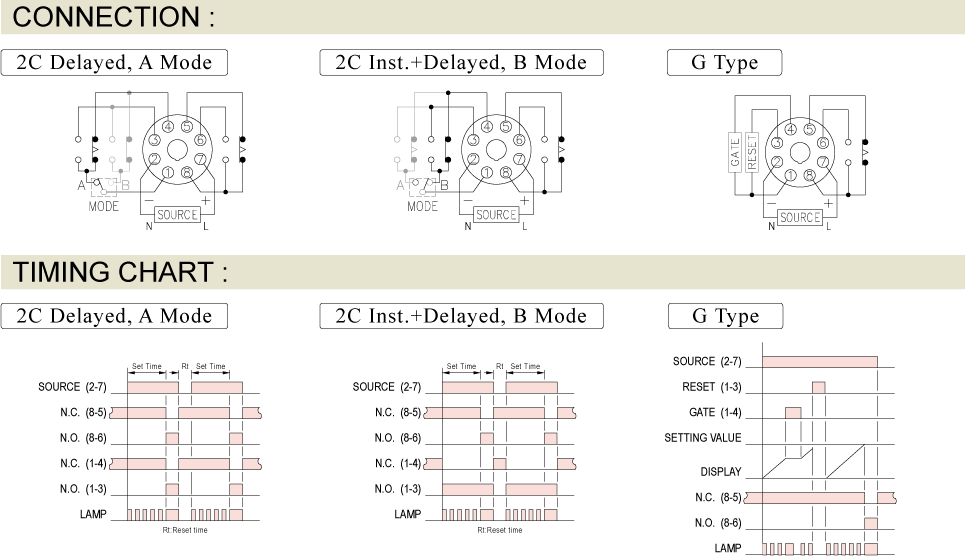

  • 2 modes selectable via a slide switch: Mode A (2C) for DPDT time-limiting
    output contacts and Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
  • External pause contact available on G type
  • UL, C-UL recognized and CE certified
